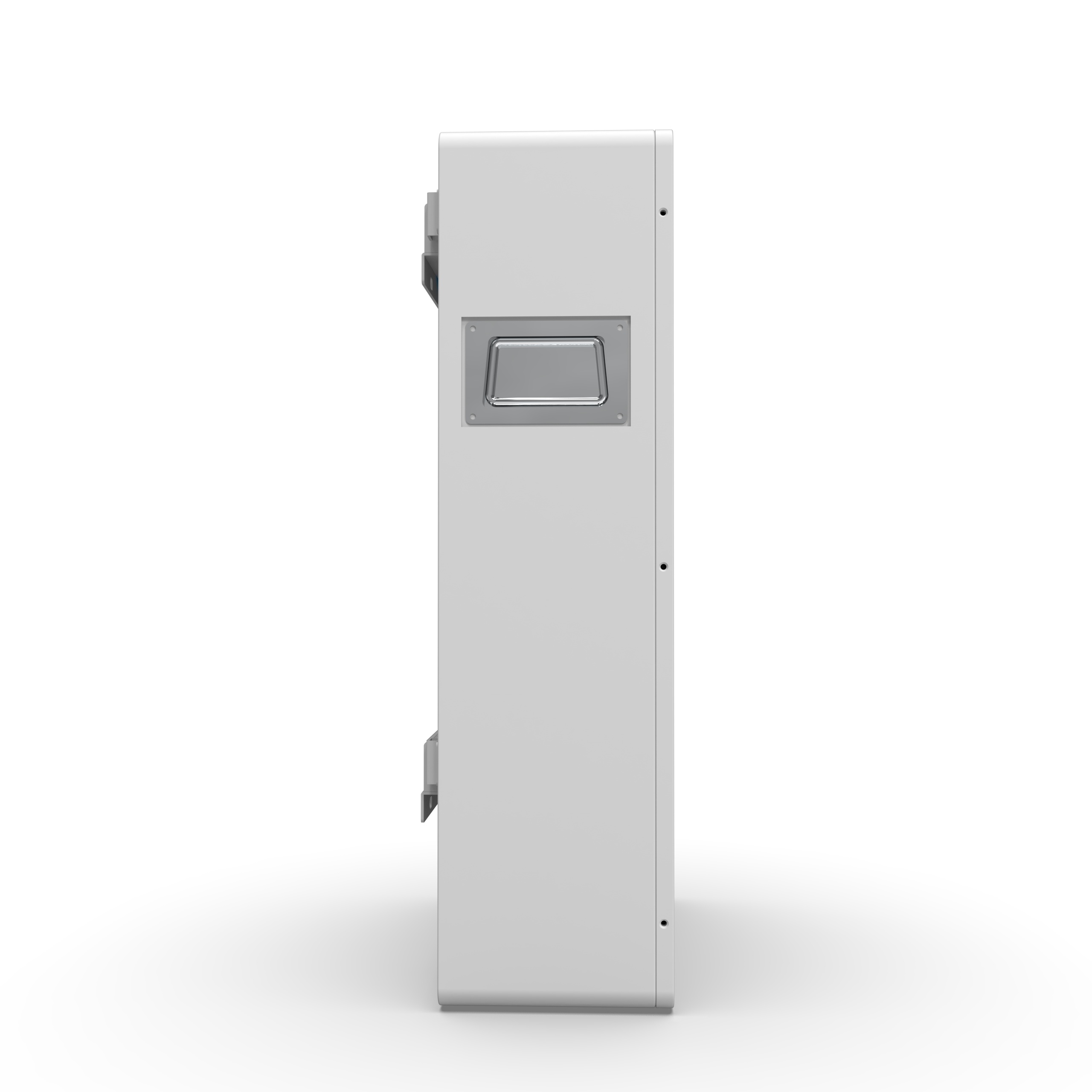

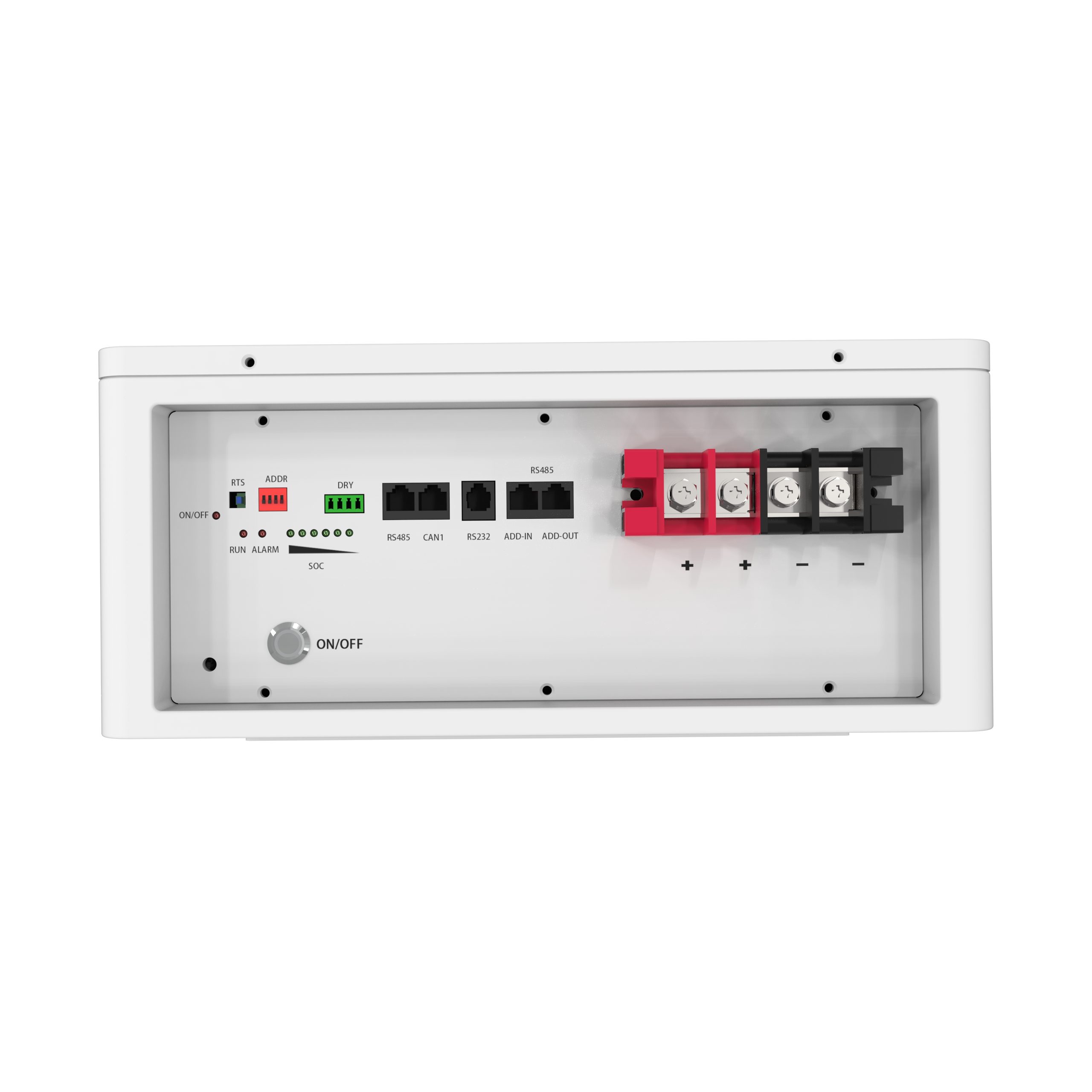

This 51.2V 100Ah household energy storage system is built as a durable floor-mounted solution that ensures stable power supply. It adopts reliable LiFePO4 cells and an independently developed management system to maintain strong performance and optimized energy output with a service life reaching beyond 6000 charge cycles.
Rated capacity :
5.12kWhSize :
600mm×370mm×160mmCycle life :
15 yearsMinimum order quantity :
5 units or moreDelivery cycle :
7-15 daysPayment methods :
T/T, credit card
Safe & Reliable
Certified to IEC 62619, UN 38.3, and CE standards, ensuring full compliance with international safety requirements.
Modular Design
Supports expansion with up to 16 units in parallel for flexible capacity scaling.
High Performance
Features a proprietary BMS, cells, and pack design—delivering over 6000 cycles with guaranteed quality and longevity.
Compact & Flexible
Standardized height for easy integration into diverse installation environments.
Wide Compatibility
Works with most hybrid and battery inverters, ideal for solar self-consumption, backup power, and off-grid applications.
Smart Features
Includes pre-charging, cell balancing, remote data logging, and firmware upgrade capabilities.
product performance advantages
lead-acid battery
Using 100% high-purity primary lead-acid batteries (such as black gold batteries) ensures superior stability compared to recycled lead products. Starting from 2024, the application of green hexagonal alloy plates will enhance energy conversion efficiency and power output
lithium battery
Compared to lead-acid batteries of the same volume, its capacity is effectively increased by 50%, with a cycle life of up to 2000 times and a service life of over 3 years. The product has passed various extreme safety tests such as needle puncture and overcharging, and features 9 major safety protection mechanisms to ensure travel safety.
low-temperature performance
The actual measurements in the winter of 2025 in the north showed that some models can still maintain more than 70% of their normal temperature battery capacity in a -20°C environment, with a low-temperature discharge performance improvement of about 30%, addressing the pain point of reduced range for users in the north during winter.
production advantage
Quality Stability
Guarantees consistent mass production quality and reliable product performance across all units.
Product Uniformity
Ensures batch-to-batch consistency for a seamless and superior user experience.
System Stability
Delivers reliable system operation while minimizing potential usage risks.
Precautions for Use
please read the manual carefully before using it to ensure properly use.
Other Chemical Reaction
The battery performance will reduce if over time using or unused for a long time due to it’s a reaction of chemical. In addition, the battery life will be shorten or injury or damage itself from electrolyte leakage, heating ignition or explosion for improper handling. It’s necessary to replace battery if unable to charge even with proper way.
Parameters
| Items | WY-25.6V100AH |
| Nominal voltage | 25.6V |
| Nominal capacity | 100Ah |
| Nominal energy | 2.56KWh |
| Max. voltage range | 21.6V~28.8V |
| Charge voltage | 28.8V |
| undervoltage protection | 21.6V |
| Recommend charge current | 50A |
| Recommend discharge current | 50A |
| Max. discharge current | 100A |
| Communication | RS485 /CAN |
| IP rating | IP20 |
| Cycle life | ≥6000 cycles |
| Net weight | ~25kg |
| Dimension(W*H*D) | 390*370*160mm |
| Cell type | Lithium-iron phosphate |
| Design life | 15 years |
| Charging Temperature | 0~65℃ |
| Discharging Temperature | -20~65℃ |
| Relative humidity | 5%~90%, No condensation |
| Install altitude | ≤3000m |
| Install location | Indoor |
| Installation | Wall mounted |
| Certification | IEC62619 / UN38.3 / CE / CEC |
-

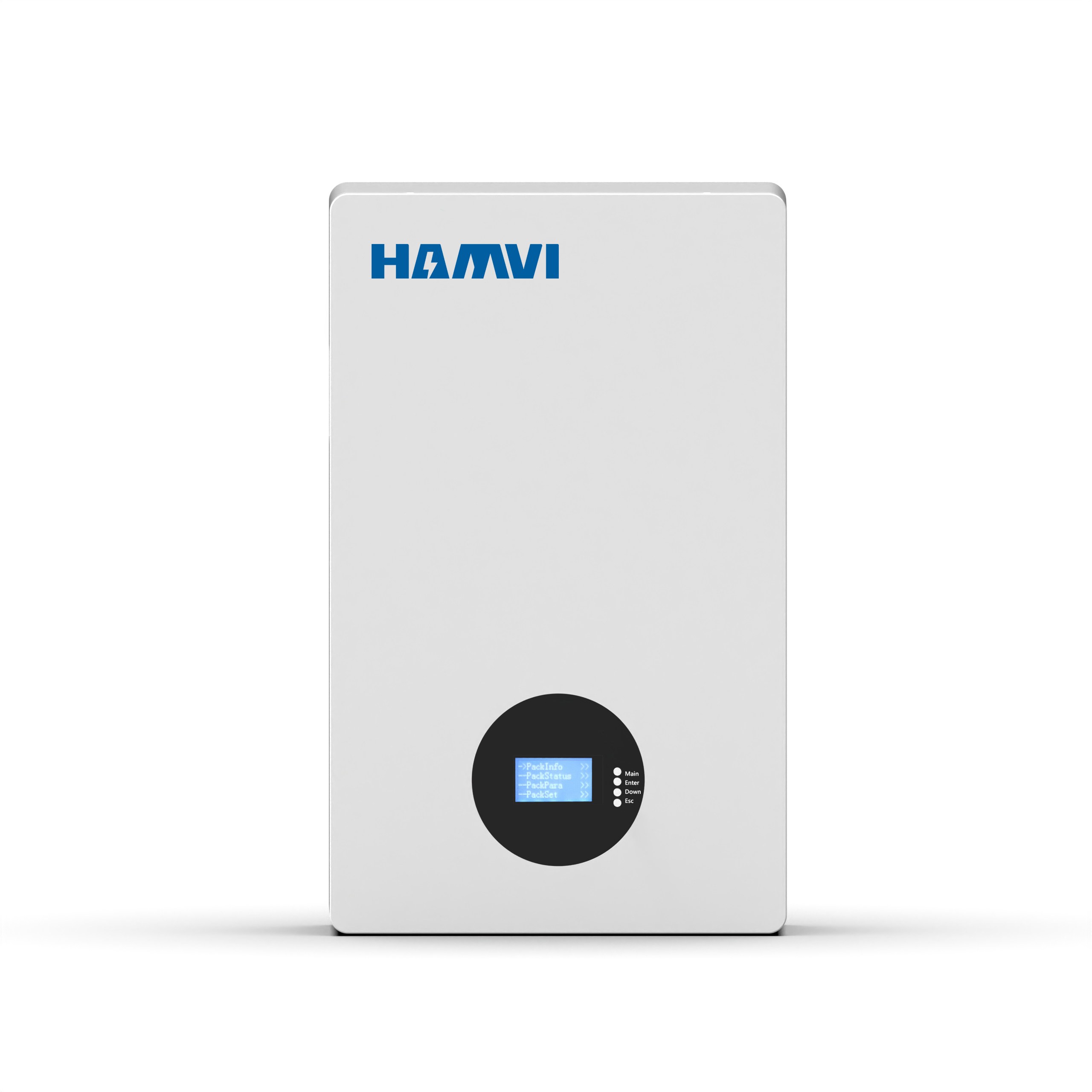

The 48V Wall-Mounted Energy Storage Battery is primarily used in the field of household power storage, and is also suitable for use inside RVs, homes, temporary buildings, and other indoor settings. The M16S-V series of energy storage batteries covers the energy demand of standalone machines ranging from 5.0KWH to 10.0KWH, with a rated output voltage of 51.2VDC.
Details

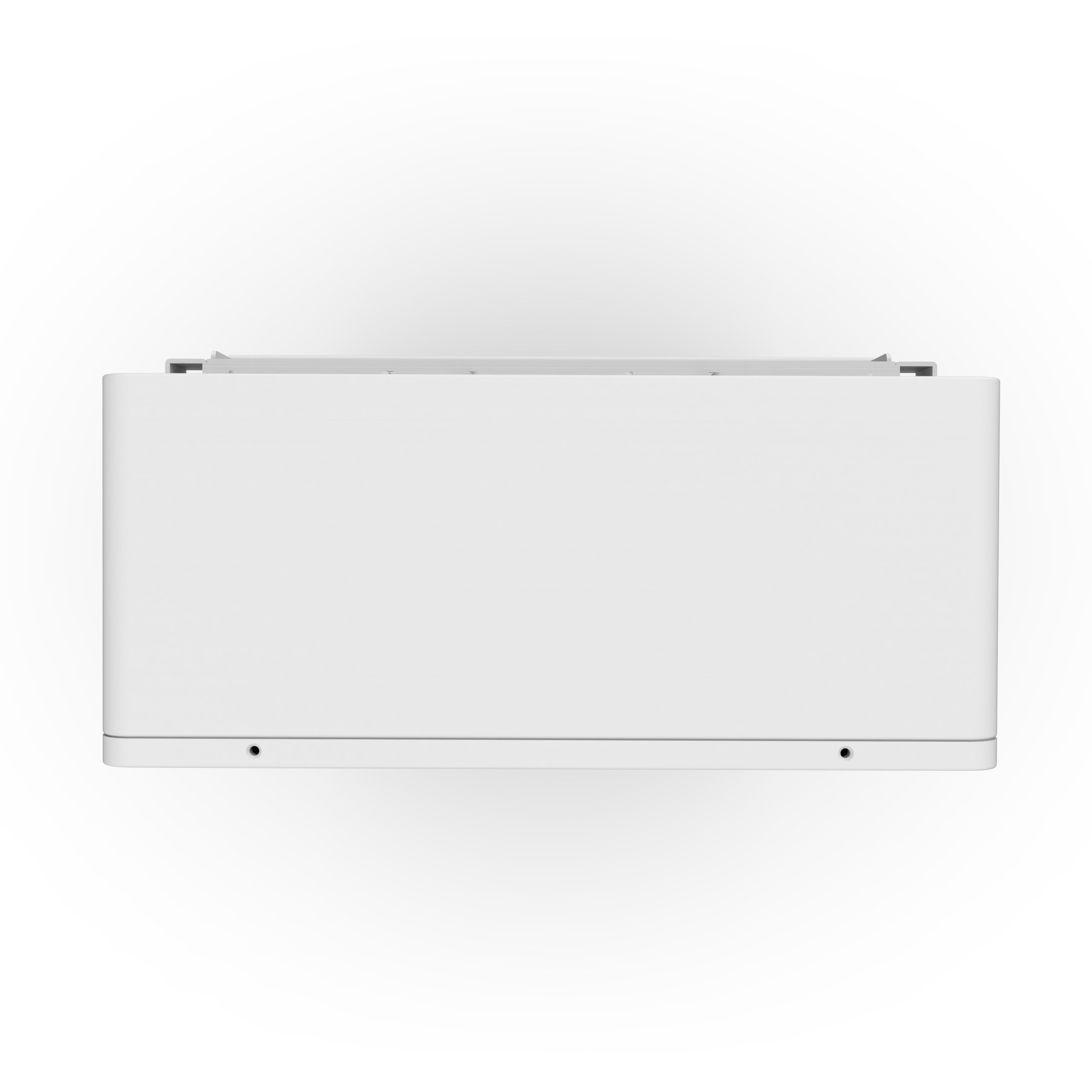

This 51.2V 100Ah household energy storage system is built as a durable floor-mounted solution that ensures stable power supply. It adopts reliable LiFePO4 cells and an independently developed management system to maintain strong performance and optimized energy output with a service life reaching beyond 6000 charge cycles.
Details
The 48V 314Ah Residential Energy Storage Battery delivers outstanding reliability, performance, and flexibility to meet all your energy needs. Built with advanced Lithium Iron Phosphate (LiFePO4) technology and a proprietary Battery Management System (BMS), it ensures high efficiency and an ultra-long service life of over 6000 cycles. Ideal for solar self-consumption, backup power, and off-grid applications, this floor-standing unit offers a scalable energy solution for any household.
Details
Designed to provide long-term stability and strong output, this 48V 314Ah residential energy storage battery adopts high-grade LiFePO4 cells paired with an intelligent BMS. It ensures high efficiency and a service life exceeding 6000 cycles. With its adaptable configuration, it is suitable for expanding home solar systems, emergency backup usage, and independent off-grid power setups.
Details
Designed as a robust floor-mounted energy system, this unit integrates high-stability LiFePO4 cells with a custom-designed battery management system. With its adaptable and expandable configuration, it fits seamlessly into solar storage setups, provides dependable backup power, and supports a wide range of off-grid energy requirements.
Details
Engineered for superior performance and flexibility, this floor-standing battery features advanced LiFePO4 technology and a proprietary BMS for exceptional efficiency and an ultra-long life of over 6000 cycles. It is the perfect scalable solution to meet all your energy needs, from solar self-consumption and reliable backup power to demanding off-grid applications.
Details
Our 100Ah High-Voltage Rack Mounted Energy Storage Battery is an efficient, reliable lithium-ion solution for grid-tied/off-grid solar and industrial backup systems
Details
The 200Ah Low-Voltage Rack Mounted Energy Storage Battery is a safe, space-saving solution for low-voltage scenarios, ideal for small-to-medium commercial/industrial facilities,
Details
