The 200Ah Low-Voltage Rack Mounted Energy Storage Battery is a safe, space-saving solution for low-voltage scenarios, ideal for small-to-medium commercial/industrial facilities,
Rated capacity :
200AHSize :
442mm×745mm×133.5mmCycle life :
≥6000 cyclesMinimum order quantity :
/Delivery cycle :
15 daysPayment methods :
T/T, credit cardThis energy storage battery is built with high-quality battery cells, featuring excellent cycle life and deep discharge performance, which can maintain stable capacity output after long-term repeated charging and discharging, significantly reducing the frequency of replacement and maintenance costs. It is equipped with an intelligent BMS (Battery Management System) that real-time monitors key parameters such as battery voltage, current, temperature and SOC (State of Charge), realizing precise management and protection of the battery pack. The product also has good environmental adaptability, able to work stably in a wide temperature range, and has passed multiple strict quality and safety certifications. Whether it is used for peak shaving and valley filling of power grids, storage of renewable energy power, or as a reliable backup power source, the 200ah low-voltage rack mounted energy storage battery can deliver efficient and stable energy storage performance.
Safe Reliable
High safety LiFePO4 battery.
Compliance with IEC62619, UN38.3, CE,
Compact Flexible
standard height design.
Compatibility
Compatible with most hybrid/battery inverter in self- consumption, back-up and off-grid applications.
Ultra performance
More than 6000 cycles, self-developed BMS/Cell/Pack to ensure best quality.
Intellegence
Strong pre-charge and balancing capability.
Remote data history & firmware upgrading function
| Items | WY-51.2V100AH（3U) |
| Nominal voltage | 51.2V |
| Nominal capacity | 200Ah |
| Nominal energy | 10.24KWh |
| Max. voltage range | 43.2V~57.6V |
| Charge voltage | 57.6V |
| undervoltage protection | 43.2V |
| Recommend charge current | 100A |
| Recommend discharge current | 100A |
| Max. discharge current | 200A |
| Communication | RS485 /CAN |
| IP rating | IP20 |
| Cycle life | ≥6000 cycles |
| Net weight | ~83kg |

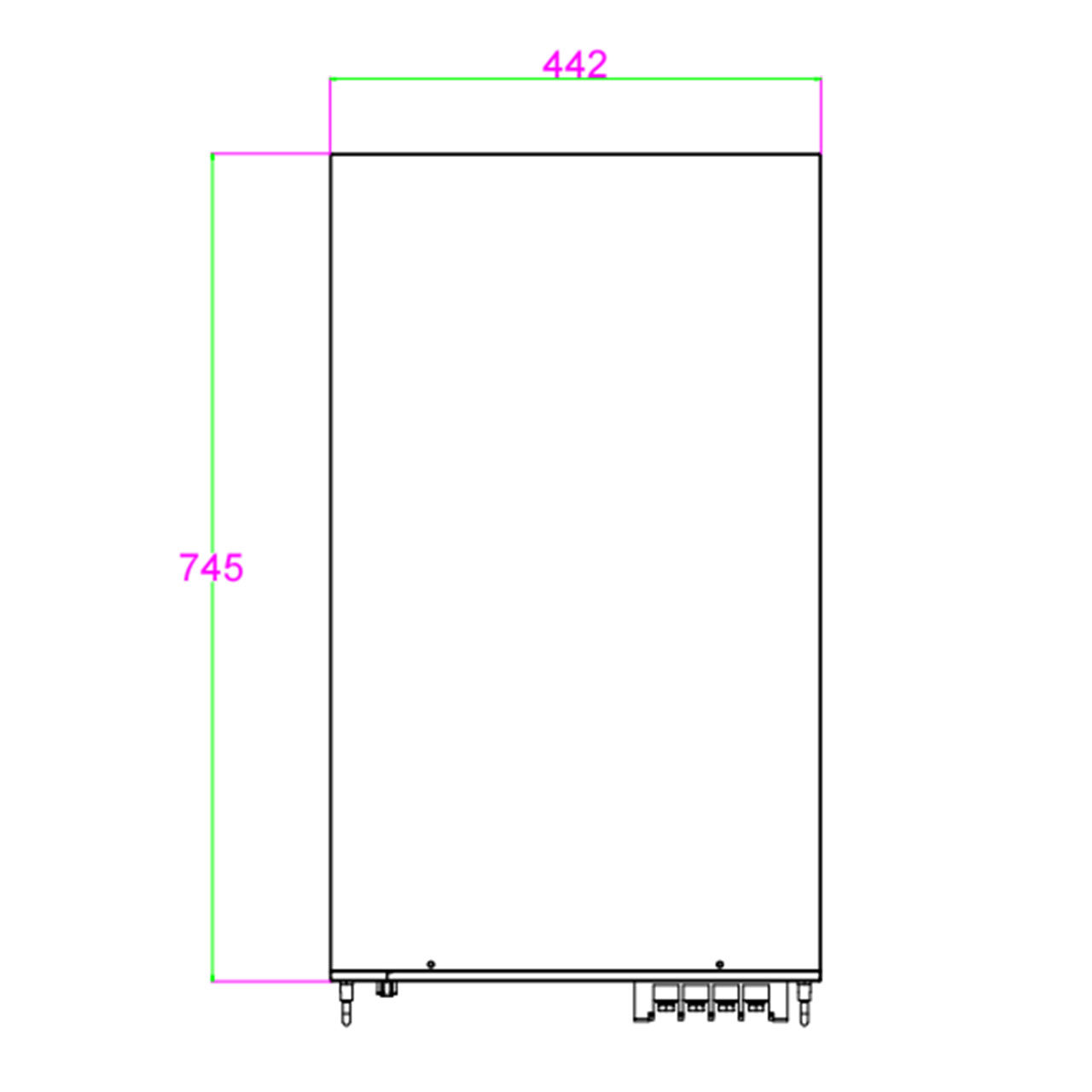

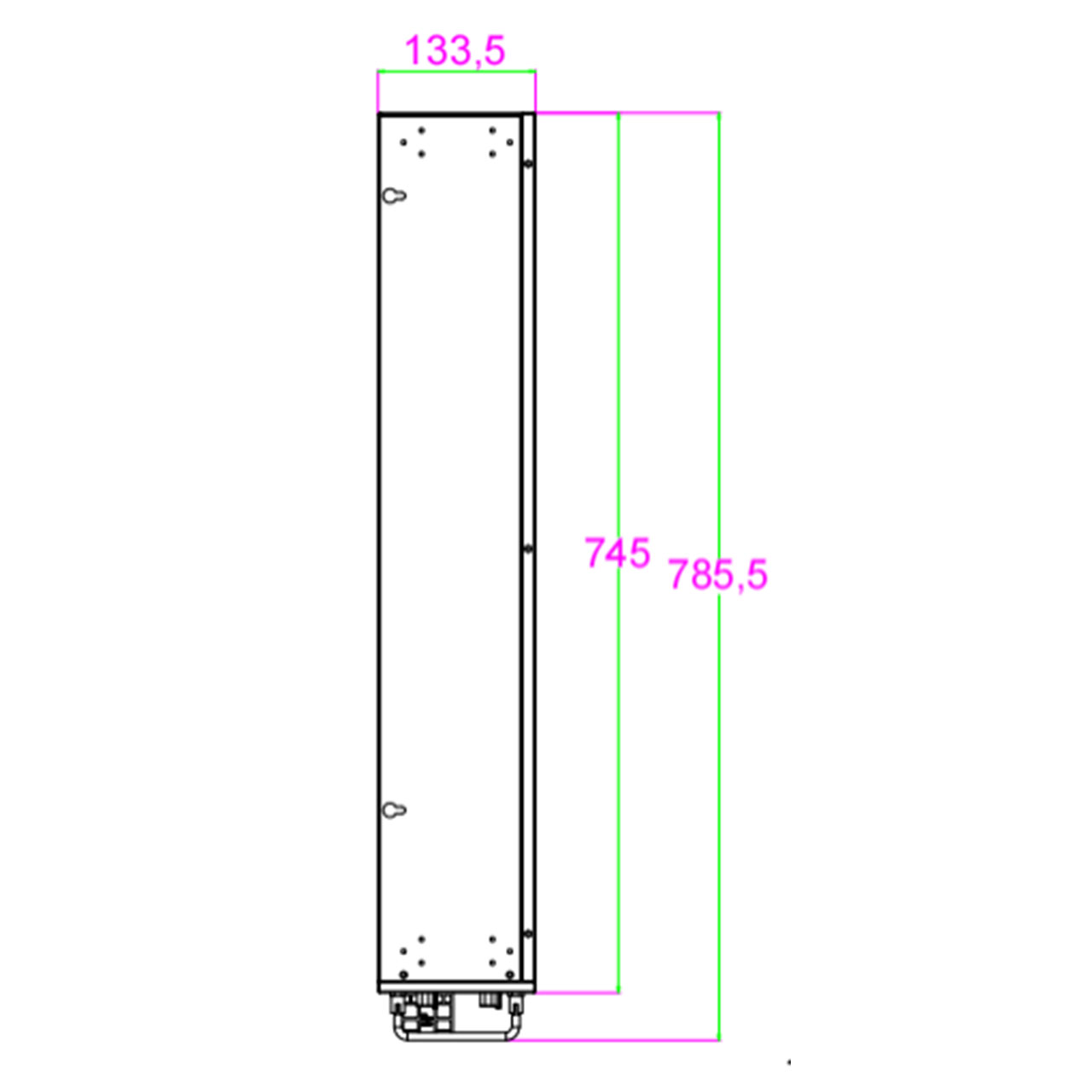

| Dimension(W*H*D) | 442*745*133.5mm |
| Cell type | Lithium-iron phosphate (LiFePO） |
| Design life | 15 years |
| Charging Temperature | 0~65℃ |
| Discharging Temperature | -20~65℃ |
| Relative humidity | 5%~90%, No condensation |
| Install altitude | ≤3000m |
| Install location | Indoor |
| nstallation | Stack/ Rack mounted |
| Certification | IEC62619 / UN38.3 / CE / CEC |
