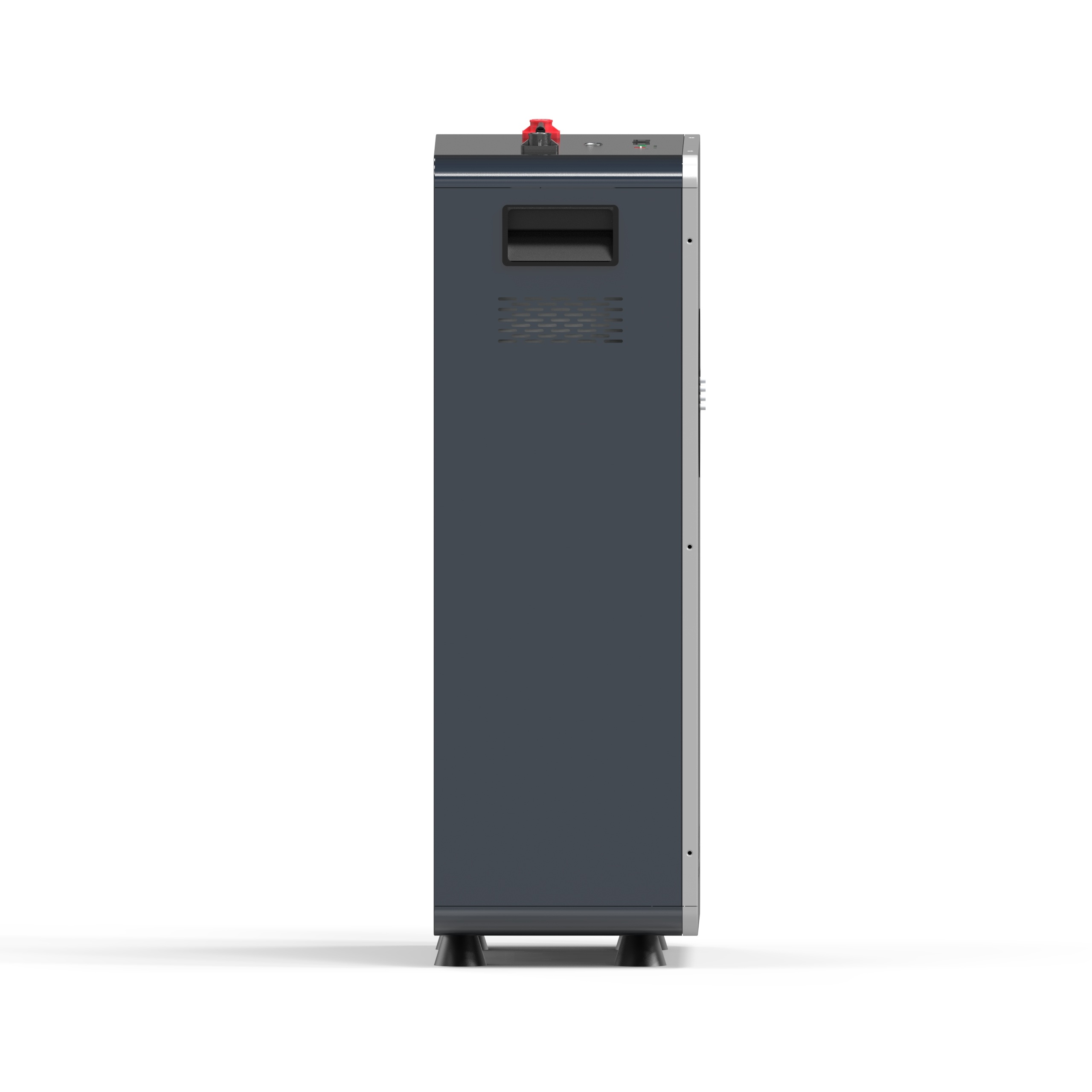

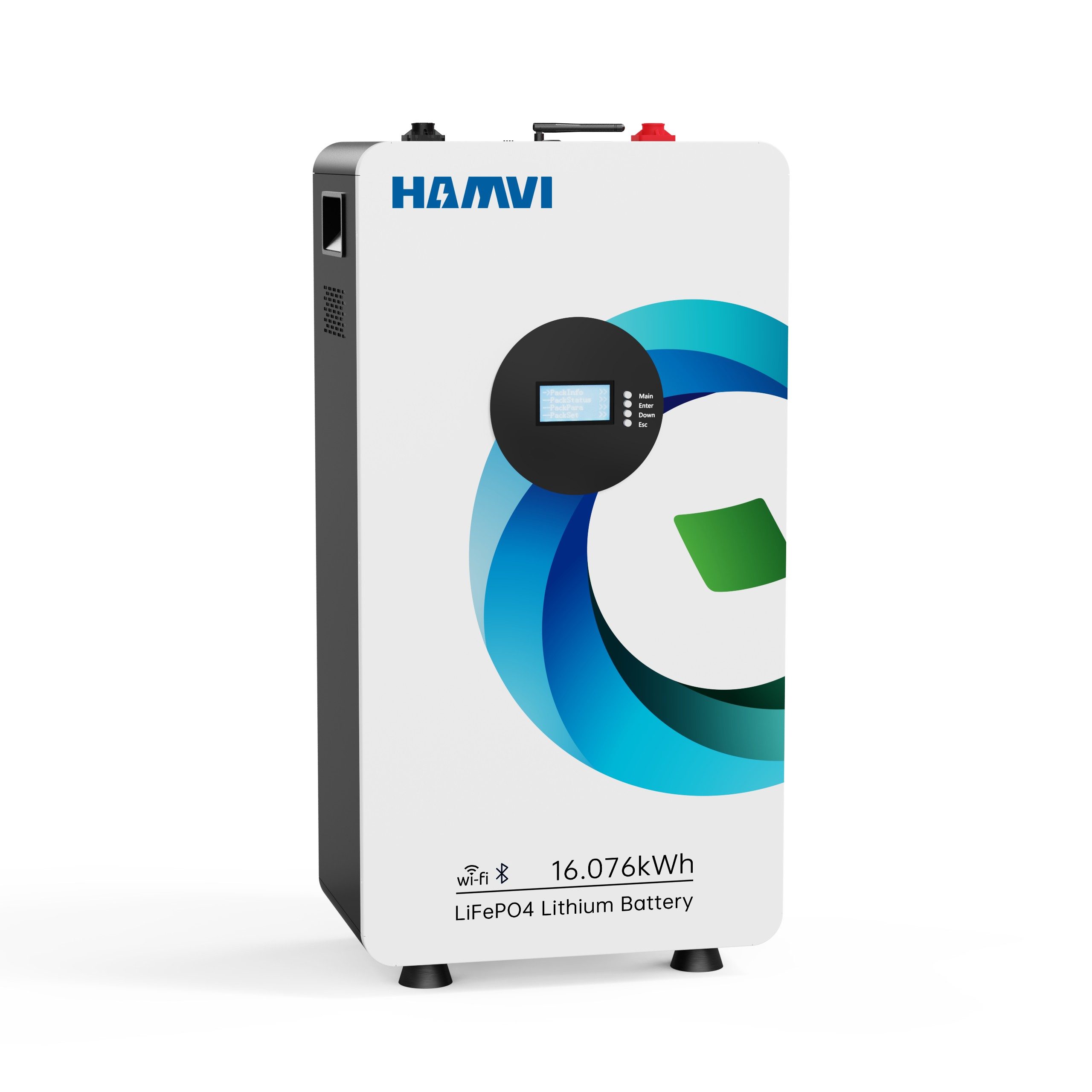

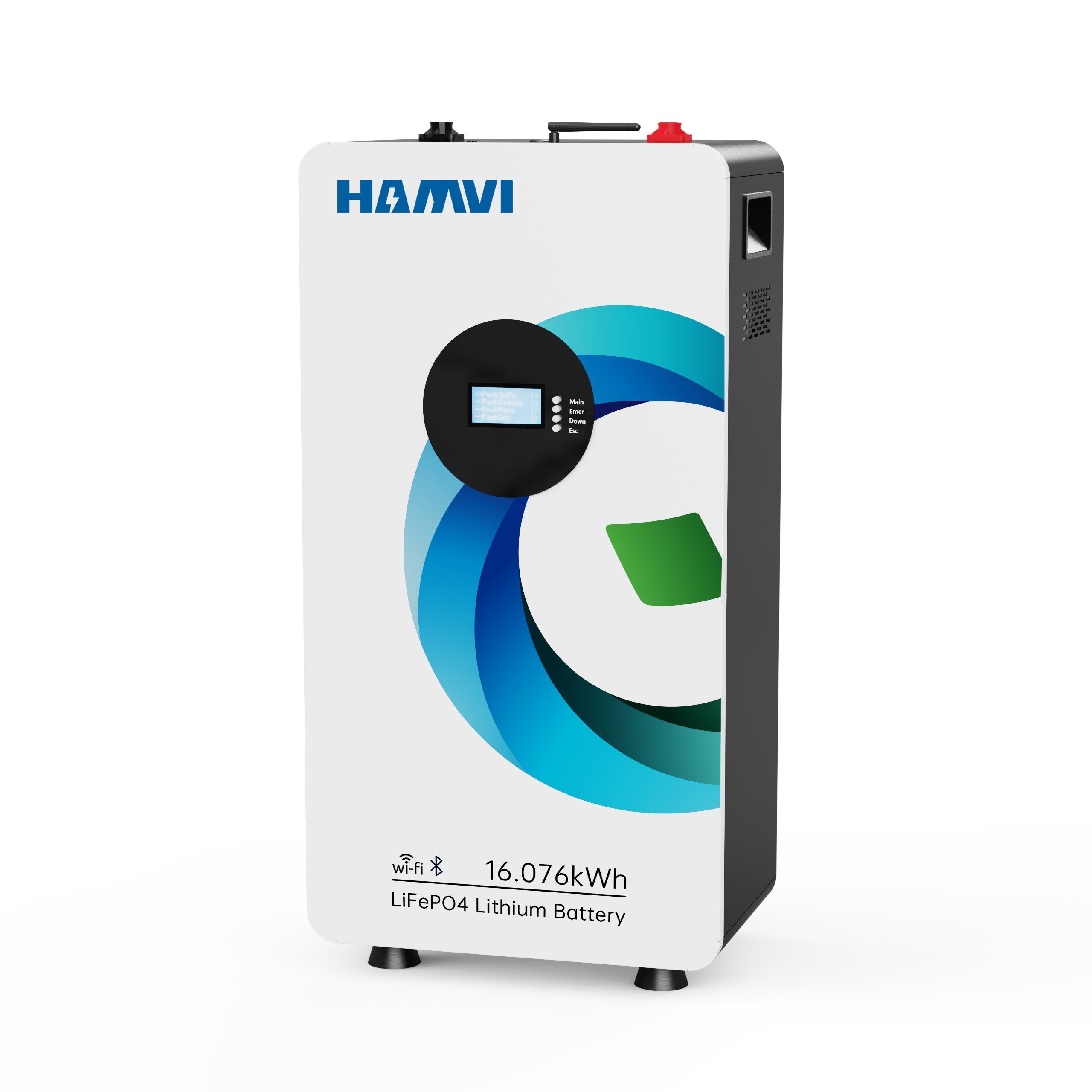

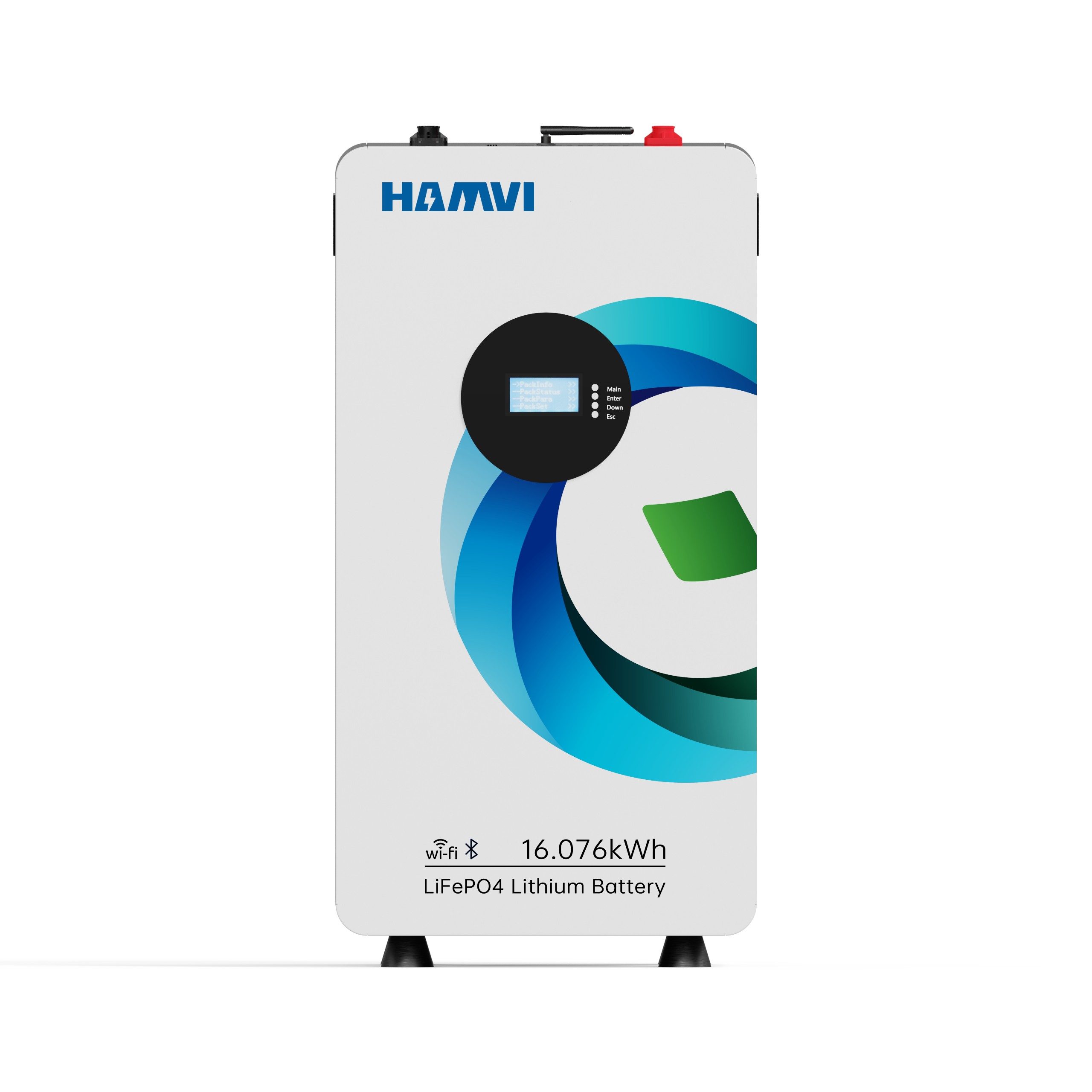

Engineered for superior performance and flexibility, this floor-standing battery features advanced LiFePO4 technology and a proprietary BMS for exceptional efficiency and an ultra-long life of over 6000 cycles. It is the perfect scalable solution to meet all your energy needs, from solar self-consumption and reliable backup power to demanding off-grid applications.
Rated capacity :
16.076kWhSize :
740mm×395mm×250mmCycle life :
≥5000 timesMinimum order quantity :
5 units or moreDelivery cycle :
7-15 daysPayment methods :
T/T, credit cardProduct Features
Ensures batch-to-batch consistency, with internal resistance as low as 0.3mΩ for 280Ah models.
Features a 200A battery management system on 200Ah+ models, delivering enhanced overcurrent tolerance and safety.
Constructed with 2mm thick sheet metal for optimal strength-to-weight ratio and high corrosion resistance.
Streamlined wall-mounted and floor-standing designs; floor models measure just 15cm thick and occupy under 1㎡.
White textured paint applied via automated spraying and baking for a stain-resistant, easy-clean surface.
100% compatible with all inverter brands for seamless system integration.
3.5-inch color screen for real-time monitoring of operational parameters and battery health.
Supports parallel connection of up to 16 units for total capacity expansion to 256kWh.
product performance advantages
Lead-Acid Battery
Utilizing 100% high-purity primary lead (as used in premium "black gold" batteries) ensures significantly higher stability than recycled lead alternatives. Beginning in 2024, the adoption of green hexagonal alloy plates will further improve energy conversion efficiency and power output.
Lithium Battery
Offering 50% more capacity than lead-acid batteries of equivalent size, this lithium solution delivers up to 2000 cycles and a service life exceeding 3 years. It has passed rigorous safety tests—including nail penetration and overcharge tests—and incorporates 9 key protection mechanisms to ensure complete travel safety.
Low-Temperature Performance
Based on real-world testing during the 2025 northern winter, select models retain over 70% of their room-temperature capacity even at -20°C. With a 30% improvement in low-temperature discharge performance, these batteries effectively mitigate the winter range loss commonly experienced by users in cold regions.
Production Advantage
Quality stability
Ensure the quality stability of mass production and guarantee product consistency
Product uniformity
Ensure the uniformity of products within the same batch and enhance user experience
system stability
Ensure the stability and reliability of the system, and reduce the risk of use
Precautions for Use
please read the manual carefully before using it to ensure properly use.
Other Chmical Rerction
The battery performance will reduce if over time using or unused for a long time due to it’s a reaction of chemical. In addition, the battery life will be shorten or injury or damage itself from electrolyte leakage, heating ignition or explosion for improper handling. It’s necessary to replace battery if unable to charge even with proper way.
Specifications Parameters
|
NO. |
Item |
Specification |
Comments |
|
|
1 |
Nominal capacity |
314Ah |
|
|
|
2 |
Nominal voltage |
51.2V |
|
|
|
3 |
Size((length×width×height, mm) |
740*395*250 |
excluding feet and terminals |
|
|
4 |
Reference weight |
Approximately 115kg |
|
|
|
5 |
Charge |
Maximum charging voltage |
57.6V |
|
|
|
|
Standard charging current |
150A |
|
|
|
|
Maximum charging current |
150A |
|
|
6 |
Discharge |
Minimum discharge voltage |
43.2V |
|
|
|
|
Standard discharge current |
150A |
|
|
|
|
Maximum discharge current |
180A |
|
|
7 |
Charging temperature |
0℃~+55℃ |
|
|
|
8 |
Discharge temperature |
-20℃~+55℃ |
|
|
|
9 |
Storage temperature |
-20℃~+55℃ |
|
|
|
10 |
Cycle life |
≥5000次@80%SOH |
25℃±2℃ |
|
|
11 |
Shipping status |
40%SOC |
|
|
|
12 |
Storage humidity |
<75%R.H. |
|
|
The 48V Wall-Mounted Energy Storage Battery is primarily used in the field of household power storage, and is also suitable for use inside RVs, homes, temporary buildings, and other indoor settings. The M16S-V series of energy storage batteries covers the energy demand of standalone machines ranging from 5.0KWH to 10.0KWH, with a rated output voltage of 51.2VDC.
Details
This 51.2V 100Ah household energy storage system is built as a durable floor-mounted solution that ensures stable power supply. It adopts reliable LiFePO4 cells and an independently developed management system to maintain strong performance and optimized energy output with a service life reaching beyond 6000 charge cycles.
Details
The 48V 314Ah Residential Energy Storage Battery delivers outstanding reliability, performance, and flexibility to meet all your energy needs. Built with advanced Lithium Iron Phosphate (LiFePO4) technology and a proprietary Battery Management System (BMS), it ensures high efficiency and an ultra-long service life of over 6000 cycles. Ideal for solar self-consumption, backup power, and off-grid applications, this floor-standing unit offers a scalable energy solution for any household.
Details
Designed to provide long-term stability and strong output, this 48V 314Ah residential energy storage battery adopts high-grade LiFePO4 cells paired with an intelligent BMS. It ensures high efficiency and a service life exceeding 6000 cycles. With its adaptable configuration, it is suitable for expanding home solar systems, emergency backup usage, and independent off-grid power setups.
Details
Designed as a robust floor-mounted energy system, this unit integrates high-stability LiFePO4 cells with a custom-designed battery management system. With its adaptable and expandable configuration, it fits seamlessly into solar storage setups, provides dependable backup power, and supports a wide range of off-grid energy requirements.
Details
Engineered for superior performance and flexibility, this floor-standing battery features advanced LiFePO4 technology and a proprietary BMS for exceptional efficiency and an ultra-long life of over 6000 cycles. It is the perfect scalable solution to meet all your energy needs, from solar self-consumption and reliable backup power to demanding off-grid applications.
Details
Our 100Ah High-Voltage Rack Mounted Energy Storage Battery is an efficient, reliable lithium-ion solution for grid-tied/off-grid solar and industrial backup systems
Details
The 200Ah Low-Voltage Rack Mounted Energy Storage Battery is a safe, space-saving solution for low-voltage scenarios, ideal for small-to-medium commercial/industrial facilities,
Details
