Our 100Ah High-Voltage Rack Mounted Energy Storage Battery is an efficient, reliable lithium-ion solution for grid-tied/off-grid solar and industrial backup systems
Rated capacity :
100AHSize :
442mm×420mm×1131mmCycle life :
≥6000 cyclesDelivery cycle :
15 daysPayment methods :
T/T, credit cardMeet the ultimate solution for scalable energy storage: the 100Ah High-Voltage Rack Mounted Energy Storage Battery. Designed to adapt to diverse scenarios—from residential solar backup to large-scale commercial energy management—this battery offers flexible expansion capabilities that allow users to stack multiple units for higher capacity demands. Its high-voltage configuration minimizes energy loss during transmission, optimizing overall system efficiency, while the rugged rack-mounted build ensures stable operation in harsh environments with excellent thermal management. Whether you’re looking to store excess solar energy for nighttime use, create a reliable emergency power backup, or reduce reliance on the grid, this battery delivers the durability, scalability, and cost-effectiveness that modern energy systems require. Plug-and-play functionality further streamlines deployment, making it a hassle-free upgrade for any energy storage project.
Safe Reliable
High safety LiFePO4 battery.
Compliance with IEC62619, UN38.3, CE,
Compact Flexible
standard height design.
Compatibility
Compatible with most hybrid/battery inverter in self- consumption, back-up and off-grid applications.
Ultra performance
More than 6000 cycles, self-developed BMS/Cell/Pack to ensure best quality.
Intellegence
Strong pre-charge and balancing capability.
Remote data history & firmware upgrading function
| Items | WY-307.2V100AH（3U) |
| Nominal voltage | 307.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 30.72KWh |
| Max. voltage range | 259.2V~345.6V |
| Charge voltage | 345.6V |
| undervoltage protection | 259.2V |
| Recommend charge current | 50A |
| Recommend discharge current | 50A |
| Max. discharge current | 100A |
| Communication | RS485 /CAN |
| IP rating | IP20 |
| Cycle life | ≥6000 cycles |
| Net weight | ~260kg |

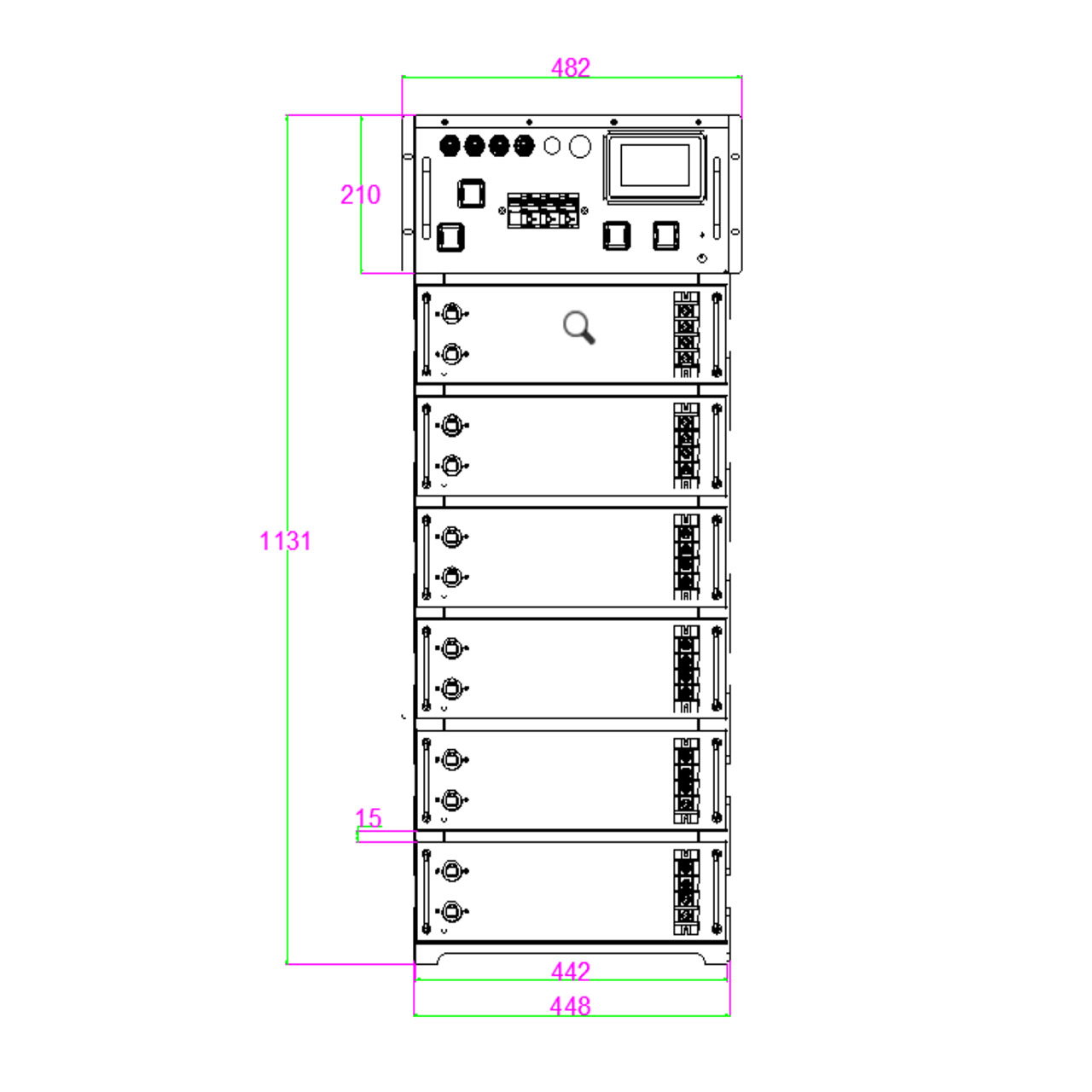

| Dimension(W*H*D) | 442*420*1131mm |
| Cell type | Lithium-iron phosphate (LiFePO） |
| Design life | 15 years |
| Charging Temperature | 0~65℃ |
| Discharging Temperature | -20~65℃ |
| Relative humidity | 5%~90%, No condensation |
| Install altitude | ≤3000m |
| Install location | Indoor |
| nstallation | Stack/ Rack mounted |
| Certification | IEC62619 / UN38.3 / CE / CEC |
