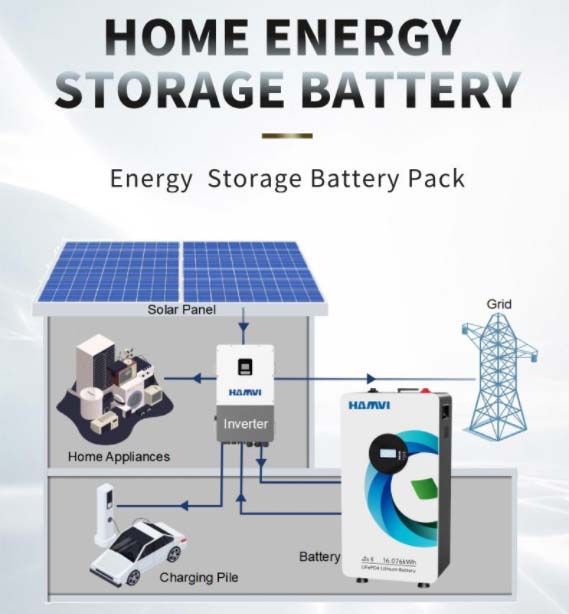

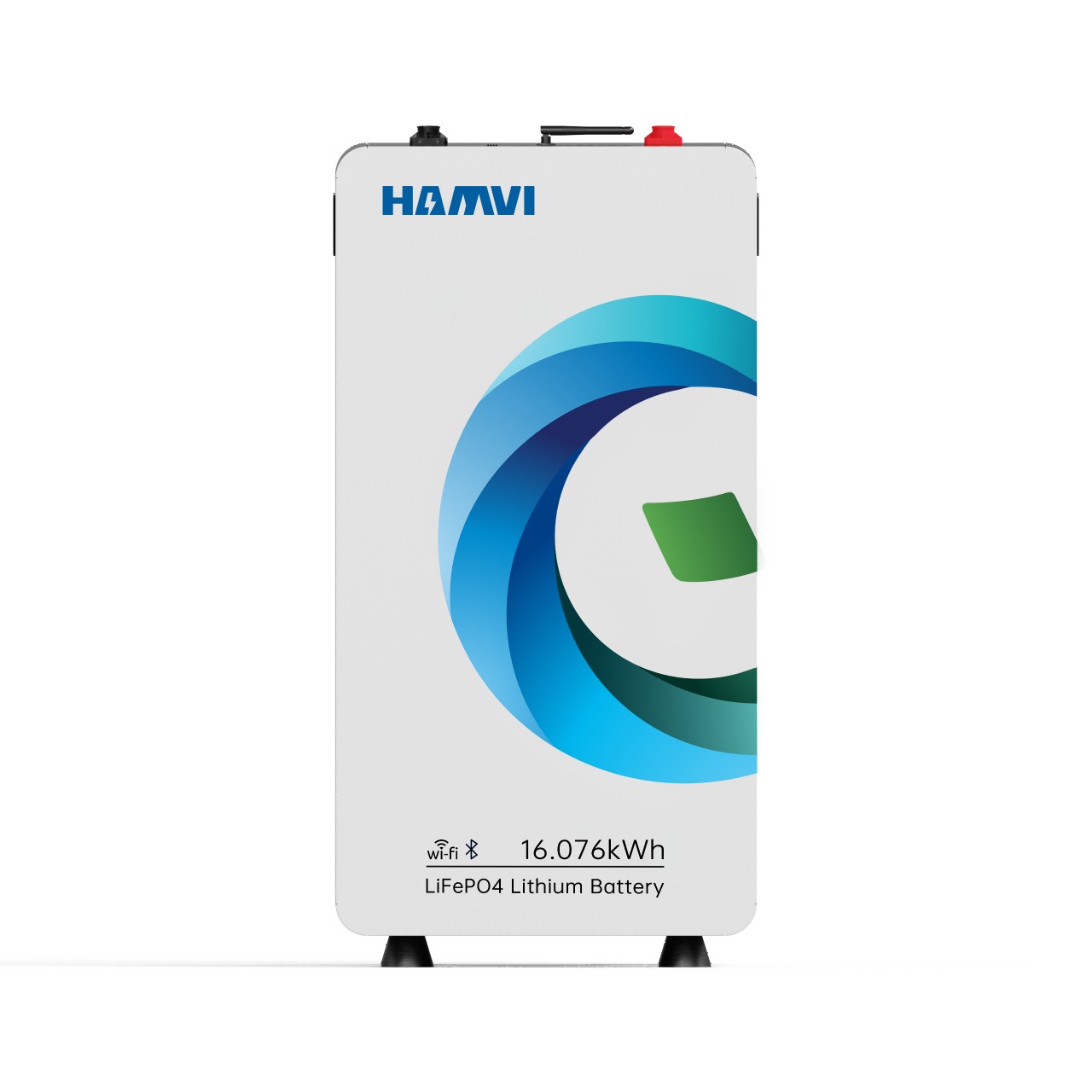

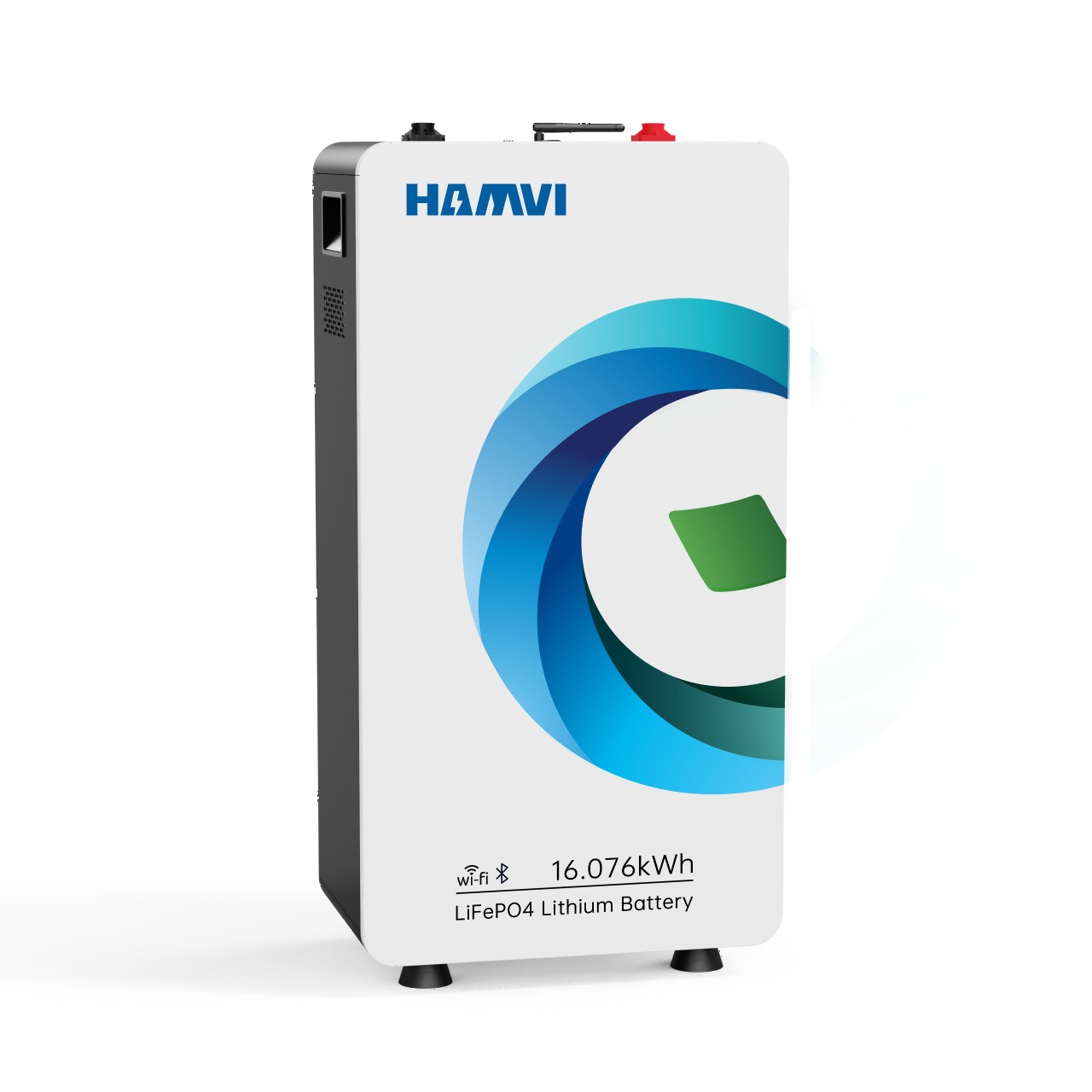

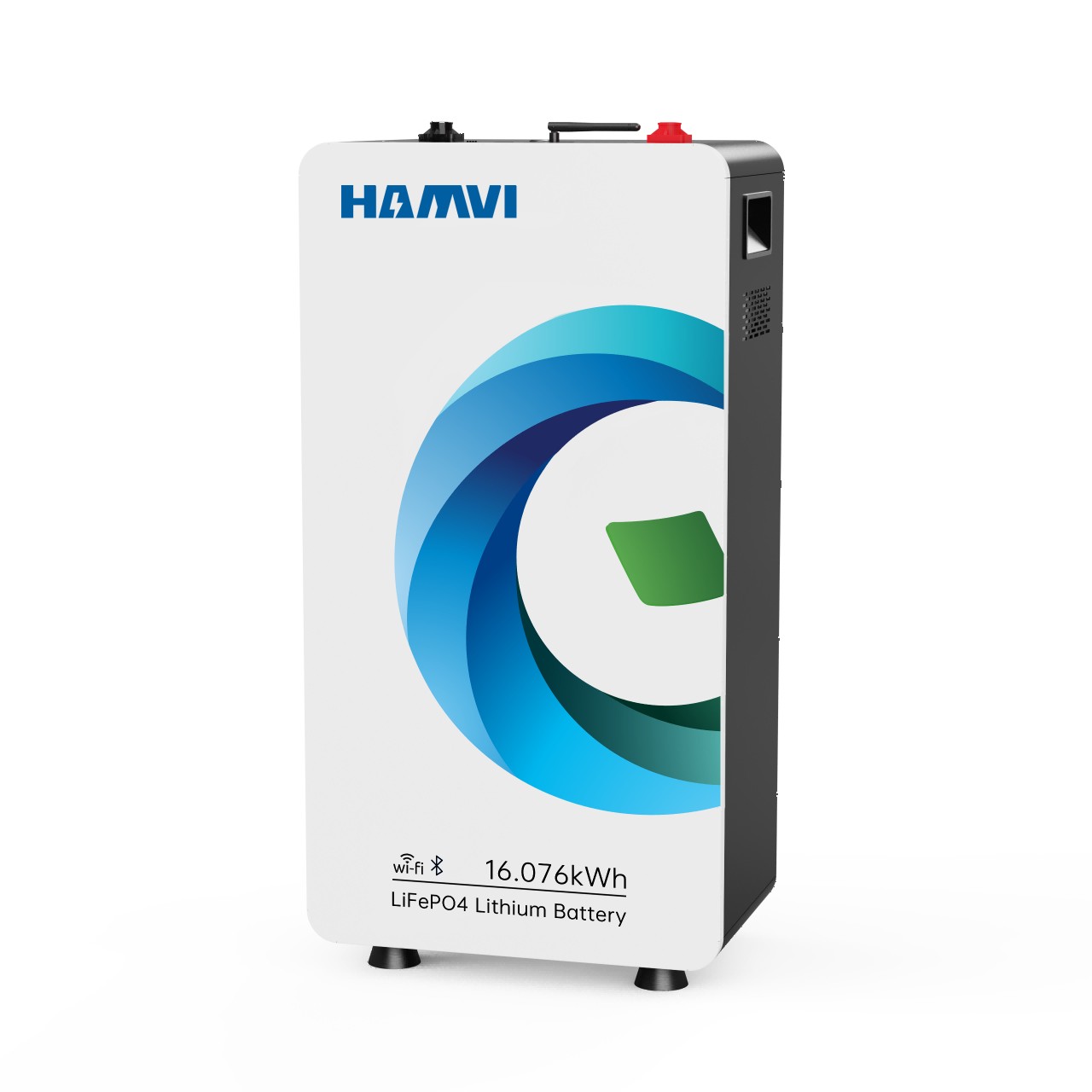

Designed as a robust floor-mounted energy system, this unit integrates high-stability LiFePO4 cells with a custom-designed battery management system. With its adaptable and expandable configuration, it fits seamlessly into solar storage setups, provides dependable backup power, and supports a wide range of off-grid energy requirements.
Rated capacity :
16.076kWhSize :
740mm×395mm×250mmCycle life :
≥5000 timesMinimum order quantity :
5 units or moreDelivery cycle :
7-15 daysPayment methods :
T/T, credit cardEvery cell is meticulously sorted to ensure flawless consistency across each production batch. Experience minimal internal resistance—as low as 0.3mΩ for 280Ah models.
Equipped with a high-performance 200A Battery Management System on all 200Ah+ models. Delivers robust overcurrent protection and enhanced operational safety.
Built with 2mm premium sheet metal for optimal strength-to-weight ratio. Combines structural integrity with exceptional corrosion resistance.
Choose from sleek wall-mounted or compact floor-standing models. Floor units feature a slim 15cm profile and occupy less than 1㎡ of floor space.
Advanced painting and baking technology creates a smooth white matte surface. Resistant to stains and fingerprints, maintaining its elegant appearance with minimal maintenance.
Seamlessly integrates with all inverter brands and models. Plug-and-play installation ensures immediate operation without compatibility concerns.
3.5-inch high-resolution screen provides real-time monitoring of all critical battery parameters and system health status at a glance.
Expand your power capacity effortlessly. Connect up to 16 units in parallel to create a massive 256kWh energy storage system.
product performance advantages
Lead-Acid Battery Series
Lithium Battery Series
All-Weather Low-Temperature Performance
production advantage
Quality Stability
Guaranteed mass production consistency and reliable performance in every unit—batch after batch.
Product Uniformity
Rigorous quality control ensures every product in the same batch performs identically, delivering a seamless and superior user experience.
System Stability
Engineered for reliable and steady operation, significantly reducing potential risks and ensuring peace of mind during daily use.
Precautions for Use
please read the manual carefully before using it to ensure properly use.
Other Chmical Rerction
The battery performance will reduce if over time using or unused for a long time due to it’s a reaction of chemical. In addition, the battery life will be shorten or injury or damage itself from electrolyte leakage, heating ignition or explosion for improper handling. It’s necessary to replace battery if unable to charge even with proper way.
Specifications Parameters
|
NO. |
Item |
Specification |
Comments |
|
|
1 |
Nominal capacity |
314Ah |
|
|
|
2 |
Nominal voltage |
51.2V |
|
|
|
3 |
Size((length×width×height, mm) |
740*395*250 |
excluding feet and terminals |
|
|
4 |
Reference weight |
Approximately 115kg |
|
|
|
5 |
Charge |
Maximum charging voltage |
57.6V |
|
|
|
|
Standard charging current |
150A |
|
|
|
|
Maximum charging current |
150A |
|
|
6 |
Discharge |
Minimum discharge voltage |
43.2V |
|
|
|
|
Standard discharge current |
150A |
|
|
|
|
Maximum discharge current |
180A |
|
|
7 |
Charging temperature |
0℃~+55℃ |
|
|
|
8 |
Discharge temperature |
-20℃~+55℃ |
|
|
|
9 |
Storage temperature |
-20℃~+55℃ |
|
|
|
10 |
Cycle life |
≥5000次@80%SOH |
25℃±2℃ |
|
|
2.5V-3.65V |
||||
|
11 |
Shipping status |
40%SOC |
|
|
|
12 |
Storage humidity |
<75%R.H. |
|
|
The 48V Wall-Mounted Energy Storage Battery is primarily used in the field of household power storage, and is also suitable for use inside RVs, homes, temporary buildings, and other indoor settings. The M16S-V series of energy storage batteries covers the energy demand of standalone machines ranging from 5.0KWH to 10.0KWH, with a rated output voltage of 51.2VDC.
Details
This 51.2V 100Ah household energy storage system is built as a durable floor-mounted solution that ensures stable power supply. It adopts reliable LiFePO4 cells and an independently developed management system to maintain strong performance and optimized energy output with a service life reaching beyond 6000 charge cycles.
Details
The 48V 314Ah Residential Energy Storage Battery delivers outstanding reliability, performance, and flexibility to meet all your energy needs. Built with advanced Lithium Iron Phosphate (LiFePO4) technology and a proprietary Battery Management System (BMS), it ensures high efficiency and an ultra-long service life of over 6000 cycles. Ideal for solar self-consumption, backup power, and off-grid applications, this floor-standing unit offers a scalable energy solution for any household.
Details
Designed to provide long-term stability and strong output, this 48V 314Ah residential energy storage battery adopts high-grade LiFePO4 cells paired with an intelligent BMS. It ensures high efficiency and a service life exceeding 6000 cycles. With its adaptable configuration, it is suitable for expanding home solar systems, emergency backup usage, and independent off-grid power setups.
Details
Designed as a robust floor-mounted energy system, this unit integrates high-stability LiFePO4 cells with a custom-designed battery management system. With its adaptable and expandable configuration, it fits seamlessly into solar storage setups, provides dependable backup power, and supports a wide range of off-grid energy requirements.
Details
Engineered for superior performance and flexibility, this floor-standing battery features advanced LiFePO4 technology and a proprietary BMS for exceptional efficiency and an ultra-long life of over 6000 cycles. It is the perfect scalable solution to meet all your energy needs, from solar self-consumption and reliable backup power to demanding off-grid applications.
Details
Our 100Ah High-Voltage Rack Mounted Energy Storage Battery is an efficient, reliable lithium-ion solution for grid-tied/off-grid solar and industrial backup systems
Details
The 200Ah Low-Voltage Rack Mounted Energy Storage Battery is a safe, space-saving solution for low-voltage scenarios, ideal for small-to-medium commercial/industrial facilities,
Details
